Hauschild SpeedMixer
The Original Pioneer of Centrifuge Mixing

Say YES to an Authentic SpeedMixer - Choose The Genuine SpeedMixer Trusted Globally

Benchtop Equipment

The Hauschild SpeedMixer® Benchtop series, first introduced in 1974, is widely used at universities, research labs, and QC labs worldwide.  This workhorse with half a century of heritage has recently been updated with a modern touchscreen interface, improved programmability, and suite of innovative new accessories for vacuum degassing, milling/grinding/dispersion, use of glass/stainless steel containers and more.  These new features & accessories give this classic equipment the improved process control versatility needed in modern applications.

Commonly Used In:

Battery Research
Ceramics Research
Ink and pigment research and quality control
Materials Science
Food Research & Development
Pharmaceutical Research

Top Features

Dual Asymmetrical Centrifugal (DAC) mixing – A closed disposable container is rotated around a primary axis.  The container is simultaneously counterrotated around on its own Y axis, creating a powerful mixing vortex.  This result is fast, homogeneous, repeatable mixing and bubble removal.

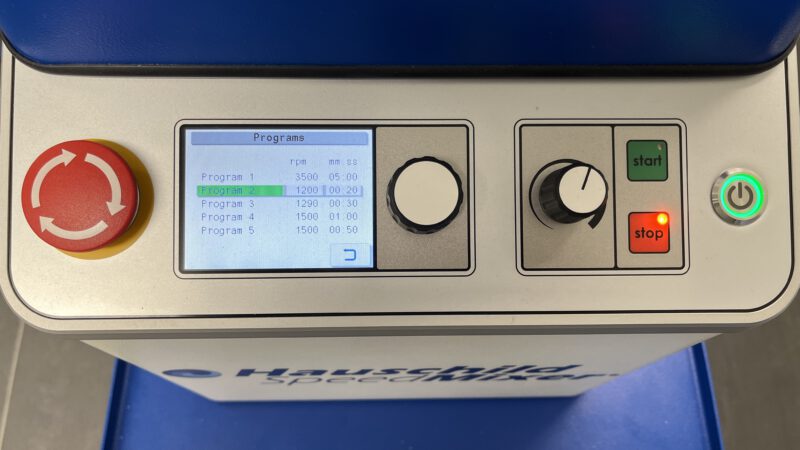

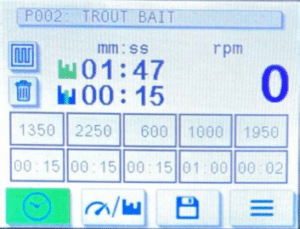

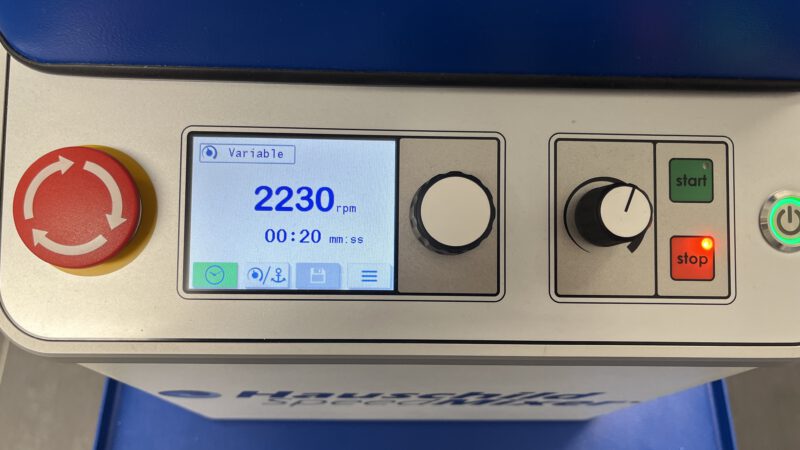

The machine’s touchscreen display makes it easy to set, save, and lock programs. This ensures that precisely optimized methods can be accurately and repeatably reproduced.  With minimal training, any operator can achieve exactly the same results.

Cup volume, shape, and material are crucial variables when optimizing a mixing process. The cup should ideally be at least twice the volume of the material being mixed to achieve the best flow characteristics.  The Hauschild SpeedMixer® benchtop series is compatible with a full range of containers from <10ml to 500ml, as well as hundreds of specialty accessories for milling, syringe filling, deairing and more.

Additional Features

Multi-zone programming

No need to counter balance

Compatible with vacuum accessory

Optimized cup volumes

Engineering proven in the field to last for decades

Built with safety features that meet or exceed industry standards & requirements (NRTL field labeling optional)

Ergonomic design continually optimize based on user feedback since 1973

Compatible with hundreds of accessories to help optimize performance for your application(s)

Customizable for innovative applications that require innovative solutions

The Hauschild team will support you in selecting the best machine and accessories for your application.
As a Hauschild customer you will also receive training and technical support from our technical staff.

Case Study

Enhancing Lithium Ion Battery Materials Research through Advanced Mixing Technology

The Only SpeedMixer you will ever need.

This laboratory faced the same challenges as many others in the industry due to the conventional mixing they had been using:

  1. Inadequate Dispersion and Deagglomeration: Lower energy methods like stir bars were unable to effectively disperse and deagglomerate the material, hampering the achievement of optimal material properties. The mortar and pestle sometimes worked well but was very inconsistent from operator to operator.
  2. Material Consumption: Ball milling worked well but required larger quantities of expensive materials, which limited the laboratory’s ability to conduct experiments on a smaller scale.
  3. Entrapped Air Bubbles: Most of the processes they had tried inherently entrained air which resulted in the presence of bubbles, leading to defects during the subsequent coating process.
  4. Unsafe operating conditions: Roll mills had been considered but were ultimately deemed too unsafe for use in their lab.

To address the air bubble issue, the company adopted an automated mixing and degassing process using the Hauschild SpeedMixer®. This technology ensured a standardized and homogenous mix of the 2-part epoxy, regardless of the operator. The Vacuum SpeedMixer was then utilized degas the epoxy directly within the dispensing syringes.  By removing all bubbles, dissolved air, and moisture/volatile content from the material within the syringes, they were able to completely prevent bubble formation during the heat curing process.

The laboratory’s breakthrough came when they adopted the Hauschild SpeedMixer® DAC 150.3 SP, a state-of-the-art mixing device. This advanced technology provided a range of benefits that addressed the laboratory’s specific challenges:

  1. Efficient Dispersion and Deagglomeration: The Hauschild SpeedMixer® DAC 150.3 SP proved highly effective in breaking down agglomerates, resulting in a superior dispersion. This improved dispersion contributed to achieving the desired material properties consistently.
  2. Reduced Material Consumption: The ability to mix in small sample containers allowed the laboratory to work with smaller quantities of expensive materials, offering significant cost savings and the ability to conduct more experiments on a more manageable scale.
  3. Bubble Elimination: Unlike conventional methods, the Hauschild SpeedMixer® facilitated a bubble-free mixing process. This feature proved crucial in eliminating defects during the subsequent coating process, ensuring higher-quality battery materials.
  4. Safety: Mixing in a closed cup with no cleaning required helped protect students from potentially hazardous materials. It had the added benefit of protecting the materials from ambient air. Because the Hauschild SpeedMixer® is a closed system that will only run when the enclosure is locked, it also eliminated all mechanical hazards.
By incorporating the Hauschild SpeedMixer® DAC 150.3 SP into their research workflow, the university laboratory experienced remarkable outcomes: a. Improved Data Generation: The accelerated the mixing process, enabling the students to generate meaningful data more quickly. The enhanced dispersion and deagglomeration facilitated a better understanding of the material properties, leading to more accurate, precise, and repeatable results. b. Successful Demonstration of Novel Materials: The faculty members were delighted with the outcomes as the laboratory was able to successfully demonstrate the utility of their new and novel materials. The improved mixing process contributed to showcasing the potential of these materials, boosting their academic and commercial prospects. c. Time and Cost Efficiency: The SpeedMixer® not only saved time by significantly reducing the mixing duration but also helped conserve expensive materials due to its ability to work with smaller quantities. This led to increased efficiency and cost-effectiveness in the laboratory’s research endeavors.
The adoption of the Hauschild SpeedMixer® DAC 150.3 SP by the university laboratory proved instrumental in overcoming the challenges faced during the mixing process of lithium-ion battery slurries. The advanced mixing technology provided efficient dispersion, deagglomeration, and bubble elimination, resulting in improved material properties and defect-free coatings. This breakthrough enhanced the laboratory’s research capabilities, allowing for faster data generation, successful material demonstrations, and improved overall efficiency. The Hauschild SpeedMixer®’s contribution to the advancement of lithium-ion battery research highlights its potential to revolutionize mixing processes in various fields of study and industry applications.

Unmatched Laboratory Mixing Innovation

Secondary features and benefits - value

Best in class performance, reliability, and value

Since inventing the technology in 1974, the team at Hauschild have been engineering and manufacturing with a focus on quality, performance, safety, and reliability.  Hauschild SpeedMixer® equipment is known for being the most powerful, versatile, and safe lab mixer / specialty production mixer available.  It is also one of the few planetary centrifugal mixers that has been proven in the field to last for decades with minimal maintenance.

Saves time & material – Protects the workforce

The Hauschild SpeedMixer® mixes quickly and is compatible with a variety of single use mixing cups. This saves time associated with mixing, as well as time, solvents, and other materials associated with cleanup.  Unlike blade mixers, DAC mixers offer the ability to size batches/mixing containers based on what is needed for testing.  This eliminates significant material waste.

Conventional mixing equipment & methods present several hazards to the workforce such as exposure to material, exposure to cleaning solvents / solvent vapors, and risk of repetitive strain injury (RSI). An automated mixing process utilizing Hauschild SpeedMixer® equipment, along with proper PPE and material handling practices, protect the operator from these sources of danger and can help reduce the rick of a Lost Time Injury (LTI).

Feature applications & video

Batteries
Ceramics
Dental
Silicones
3-D Printing
5 Videos

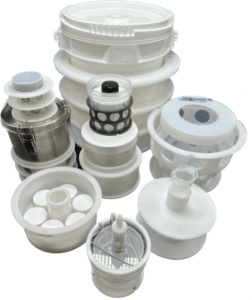

Featured Accessories

Numerous Options
Depending on the mixing weight and feeling volume different cups are available for your Hauschild SpeedMixer®. All mixing cups can be used as disposable items. Hot child offers jars in several colors, beside transparent, white and black, which is suitable for photo sensitive material. The most used jars are made of polypropylene (PP) due to its high resistance to the temperature and the low chemical reactivity. Dimensions of the cups and buckets go from few ml to up to 16l of normal capacity.

  • PP 10, 15, 30, 50, 100, 150
  • Max 40, 60, 100, 200
  • Stainless Steel 30

Standard and Customized
To help the customers obtaining the best results with their Hauschild SpeedMixer®, we continuously work on the research and development of accessories. Custom made adapters have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you.have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you finding the best suitable accessory for your machine.

  • PP 5, 10, 15, 30, 50, 100
  • Max 20, 40, 60, 100
  • Multi holders
  • Cartridge & syringe holders
  • Vial holder
  • Vacuum chamber
  • Rings
  • Cylinders
  • Spherical media

Technical specs & capability comparison

Criteria

Hauschild SpeedMixer DAC

Hauschild SpeedMixer SMART DAC

Thinky Mixers

Mazerustar (Kurabo) Mixers

FlackTek Mixer

Inventor of the DAC (Dual Asymmetric Centrifuge) technology.

Yes

No

No

No

Original technology patent.

Yes

No

No

No

In the market since.

1974

2021

1984[1]

1990

2020

Field tested technology.

49 years[2]

39 years

33 years

3 years

Mixing weight (grams).

Up to 10.000

Up to 2.000[3]

Up to 2×10.000

Up to 2×10.000

Up to 2×10.000

Lab-size 2kg machine

No

Yes

Yes

Yes

No5

Programmable/Programs.

Up to 50

Up to 500



Up to 250

Remote operation.

Yes

???

???

Yes

Independent variable counterrotation[4].

No

Yes

No5

No5

No5

Real time material’s temperature reading.

No

Yes

No[5]

No5

No5

Automatic material’s temperature control.

No

Yes

No5

No5

No5

Automatic material cooling system.

No

Yes

No5

No5

No5

Mixing under vacuum

Yes

Yes

Yes

Yes

Robotic version.

Yes

Yes

Yes

Yes

Vacuum robotic version.

No

Yes

No5

No5

No5

Integrated automatic strobe-light

No

Yes

No5

No5

Custom solution

Warranty period (months)

12

12

12

6 to 12

Expected lifetime

20+ years

Unknown

Unknown

Unknown

Made in …

Germany

Japan

Japan

USA

Type of company

Traditional family business

Corporation

Public

Single owner

Ownership

Germany

Japan

Japan

UK

Local presence with technical support











[1] The company was founded in 1971 and, according to the website, the development of the mixer took 13 years.

[2] The DAC and the SMART DAC share the same core technology.

[3] Soon available also up to 10kg.

[4] With separate, dedicated servomotor.

[5] No evidence was found about this feature.

ModelDAC 150.3 FVZDAC 150.3 SPDAC 250.3 FVZDAC 250.3 SP
 Small samples (up to 100g)Complex methodsLab scale mixing > 100gMilling with grinding media
Commonly used forHigh viscosityDispersion methods > 5minLow bulk density fillersDispersion methods > 5min
 High speed millingNanomaterialsQuality controlHigh SG materials (>1.5g/cc)

Performance
Max RPM3500350025002500
Material capacityup to 100gup to 100gup to 200gup to 200g
Largest container volume250ml250ml500ml500ml
Smallest container volume<10ml<10ml<10ml<10ml
Programs51005100
Mixing zones per program1515
Max runtime per cycle5min10min5min10min

Design
User interfaceTouchscreenTouchscreenTouchscreenTouchscreen
Width305mm (12)305mm (12)305mm (12)305mm (12)
Height 465mm (18.3″)465mm (18.3″)465mm (18.3″)465mm (18.3″)
Height (lid open)720mm (28.4″)720mm (28.4″)720mm (28.4″)720mm (28.4″)
Depth405mm (16″)405mm (16″)405mm (16″)405mm (16″)
Weight 32/70.4 (kg/lb)32/70.4 (kg/lb)35/77 (kg/lb)35/77 (kg/lb)
Input Power 120V or 230V120V or 230V120V or 230V120V or 230V
Peak power consumption950W950W950W950W
Vacuum interfaceAccessoryAccessoryAccessoryAccessory

Capabilities
Liquid mixing (< ~300k cps)
Paste mixing (> ~300k cps)
High viscosity mixing (> ~10M cps)
Powder mixing
Mix liquid with paste
Mix powder with paste
Mix liquid with powder
Mixing multiple samples at onceAccessoryAccessoryAccessoryAccessory
Dispersion
Milling & pulverizationAccessoryAccessoryAccessoryAccessory
Deairing & bubble removal
Vacuum degassingAccessoryAccessoryAccessoryAccessory
Cartridge deairingAccessoryAccessoryAccessoryAccessory
Syringe deairing AccessoryAccessoryAccessoryAccessory

Custom options:  Remote control, Robotic, exhaust port for connection to hood / “elephant trunk”, and many more…
