Hauschild SpeedMixer
The Original Pioneer of Centrifuge Mixing

Say YES to an Authentic SpeedMixer - Choose The Genuine SpeedMixer Trusted Globally

SMART DAC 1100-2000 LR

Mix. Disperse. Grind. Pulverize.

The SMART DAC LR series bridges the gap between lab scale and pilot/production scale SpeedMixer equipment.  The container volume (3.8L), weight capacity (up to 2kg), and mixing geometry (extremely large radius of rotation) are similar to our production scale (3kg – 10kg) equipment.  However, the machine can still be rolled through a standard door and runs on standard 120V/230V power.

Additionally, this new class of DAC equipment delivers the largest advancement in mixing power, process monitoring & control, and data collection since the previous generation was launched in 2010.  The fully customizable SMART DAC platform is the foundation of the most versatile and capable DAC mixing equipment to date.  With options like live temperature monitoring & control (with active cooling), independent control of main rotation/counterrotation, and a manufacturing or research optimized interface, it is already answering many of the most common requests from industry.  The platform was also designed with the future in mind.  The machine’s software and onboard PLC allow easy connection and integration of nearly any sensor imaginable as well as IOT compatibility.

Commonly Used In:

Top Features

Dual Asymmetrical Centrifugal (DAC) mixing – A closed disposable container is rotated around a primary axis.  The container is simultaneously counterrotated around on its own Y axis, creating a powerful mixing vortex.  This result is fast, homogeneous, repeatable mixing and bubble removal.

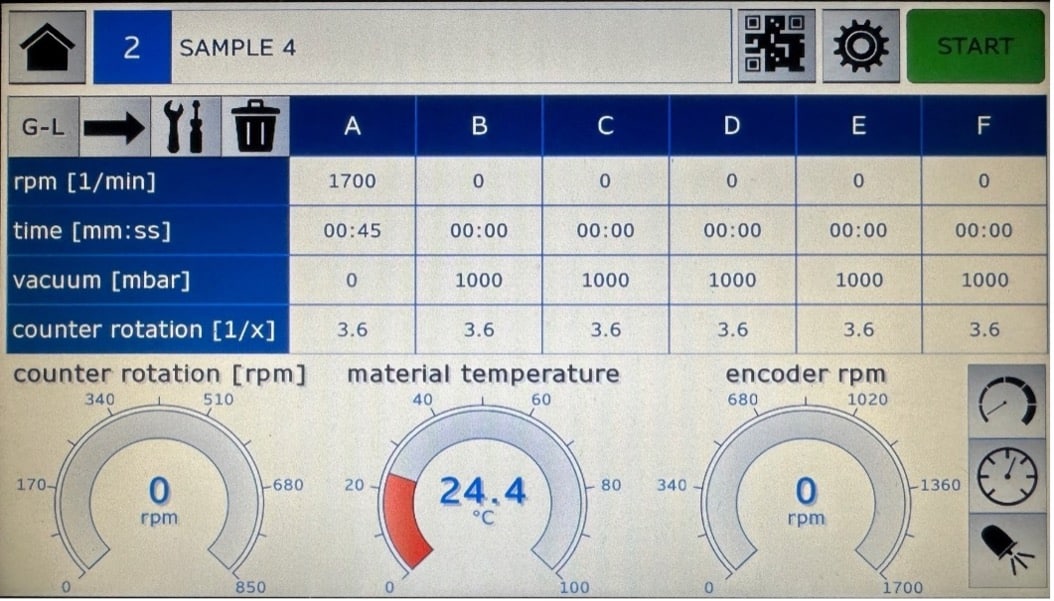

The machine’s touchscreen interface makes it easy to create programs and customize the display to show the most relevant information about the mixing process.  This ensures that precisely optimized mixing and degassing methods can be accurately and repeatably reproduced.  With minimal training, any operator can achieve exactly the same results.  The optional software packages allow remote control of the equipment from any PC, tablet, or smartphone as well as full documentation of all mixing activities for traceability purposes.

The integrated LED light can be set to remain on, off, or to flash at the same frequency as the main RPM and function as a stroboscope.  When the light is used as a stroboscope, it gives the illusion that the cup is standing still, and mixing/degassing progress can be monitored live through the viewing window.  The visual feedback can help the operator quickly optimize a process by seeing how much speed is required to move the material, when the material is fully mixed, and exactly when the material is fully degassed.

Additional Features

Live temperature monitoring and control

Active Cooling

Variable Counterrotation

Data logging software

Manufacturing Optimized Interface

Engineering proven in the field to last for decades

Built with safety features that meet or exceed industry standards & requirements (NRTL field labeling optional)

Ergonomic design continually optimize based on user feedback since 1973

Compatible with hundreds of accessories to help optimize performance for your application(s)

Customizable for innovative applications that require innovative solutions

The Hauschild team will support you in selecting the best machine and accessories for your application.
As a Hauschild customer you will also receive training and technical support from our technical staff.

Case Study

Enhancing Cannabis Processing Efficiency with Hauschild SpeedMixer® Technology

A cannabis processing facility faced significant challenges in meeting their production schedule due to the cumbersome purging process following butane/propane extraction. Despite employing reliable vacuum ovens, the prolonged extraction process, often taking days, hindered their ability to reduce residual solvent levels to an acceptable value in a timely fashion.  This case study details how the facility overcame these obstacles with the implementation of Hauschild SpeedMixer® technology, transforming their solvent purging process and enhancing overall efficiency.

The facility struggled to maintain their production schedule due to the time-consuming nature of the purging process post butane/propane extraction. Although their vacuum ovens were dependable and effective, the extended processing time and high costs associated with these systems hindered their ability to meet demand efficiently.

Discovering Hauschild SpeedMixer® Technology: Faced with the prospect of increasing the capacity of their vacuum oven array, the facility’s team stumbled upon Hauschild SpeedMixer® technology. This discovery marked a turning point in their production efficiency. The Hauschild equipment offered the potential to drastically reduce the solvent purging process time from several days to less than 30 minutes, a remarkable advancement compared to their previous methods.

The implementation of Hauschild SpeedMixer® technology brought a range of benefits:

Reduced Processing Time: The SpeedMixer® technology transformed the solvent purging process, significantly reducing processing time. This accelerated the overall production cycle, allowing the facility to meet their production schedule and demands promptly.

Cost Efficiency: Unlike the costly vacuum ovens that were previously considered for capacity expansion, the Hauschild equipment was a cost-effective solution. Its affordability made it a compelling alternative, enabling the facility to allocate resources more efficiently.

Enhanced Capacity: The SMART DAC LR series of SpeedMixer® equipment offered substantial throughput capacity, providing the facility with the ability to process large volumes of material efficiently. This capacity allowed for scalability and even accommodated the facility’s growth projections.

Versatility: The SpeedMixer® technology’s versatility was an unexpected bonus. It not only excelled in solvent purging but also proved adept at blending vape oil, infusing flower with distillate, and production of budder/badder/flan etc., enhancing the quality and diversity of the facility’s product lines.

Reliability and Durability: The SpeedMixer® equipment demonstrated reliability and durability, with a track record of lasting decades with minimal maintenance. This aspect ensured consistent operations with very minimal risk downtime, a critical factor for maintaining high production throughput.

The struggle to streamline their solvent purging process came to a successful resolution with the adoption of Hauschild SpeedMixer® technology. This revolutionary equipment brought about substantial benefits, including reduced processing time, cost efficiency, reliability, scalability, and versatility. By implementing the SMART DAC LR series, the facility was able to efficiently process large volumes of material, meet their production schedule, and even diversify their premium product lines. Hauschild SpeedMixer® technology emerged as the ideal solution, catapulting the facility’s production efficiency and paving the way for continued growth and innovation in the cannabis processing industry.

Unmatched Laboratory Mixing Innovation

Secondary features and benefits - value

Temperature control package

The Temperature Control package for the Hauschild SpeedMixer® SMART DAC series provides a number of new and novel capabilities.  The machine uses a non-contact sensor to provide Live Temperature Monitoring.  The live temperature data can be used by the SMART software to provide Temperature Control by varying process parameters accordingly.  This includes the option to apply Active Cooling directly to the mixing vessel.

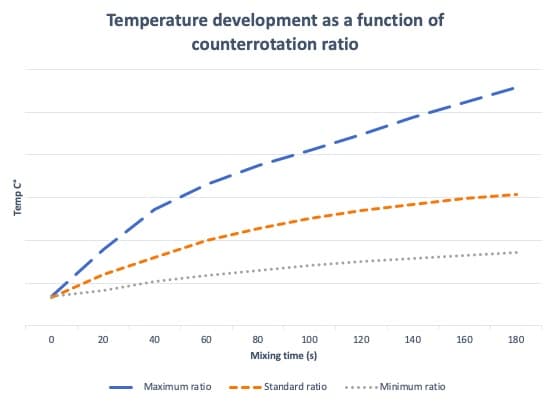

Variable Counterrotation Package

Until recently, no high-power DAC mixer on the market offered independent control of the main rotation and counter rotation of the mixing vessel.  The most powerful DAC mixer ever offered is now also available with a digitally programmable Variable Counterrotation Ratio.  This gives the user the option to favor mixing or Dearing/degassing and gives significantly more control over the temperature of the material.

Feature applications & video

Play Video

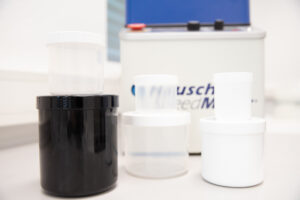

Featured Accessories

Numerous Options
Depending on the mixing weight and feeling volume different cups are available for your Hauschild SpeedMixer®. All mixing cups can be used as disposable items. Hot child offers jars in several colors, beside transparent, white and black, which is suitable for photo sensitive material. The most used jars are made of polypropylene (PP) due to its high resistance to the temperature and the low chemical reactivity. Dimensions of the cups and buckets go from few ml to up to 16l of normal capacity.

  • PP 1500, 0.6gal, 1.25gal, 2.5gal, 3.5gal, 5gal
  • SS1000, SS1600, SS2500

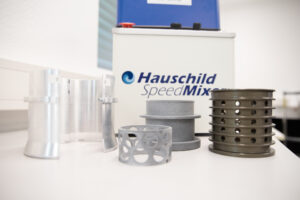

Standard and Customized
To help the customers obtaining the best results with their Hauschild SpeedMixer®, we continuously work on the research and development of accessories. Custom made adapters have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you.have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you finding the best suitable accessory for your machine.

  • PP 100, 250, 300, 1200, 2000
  • Max 100, 200, 300
  • 6gal, MU3800
  • Stainless Steel 100, 500, 1000, 1600, 2500
  • Lever Press
  • SpeedDisks

  • Rings
  • Cylinders
  • Spherical media

Technical specs & capability comparison

CriteriaHauschild SpeedMixer® DAC 150Flacktek Mixer 330 -100Thinky AR-100Hauschild SpeedMixer® DAC 400Flacktek Mixer 400-1200Thinky ARE-310
Original 1976 PatentYesNoNoYesNoNo
Original SpeedMixerYesNoNoYesNoNo
DAC SpeedMixerYesNoNoYesNoNo
Max Speed350035002200275027502000
VacuumAccessoryAccessoryNoAvailableAvailableAvailable
Warranty1 year1 year1 year1 year1 year1 year
Family OwnedYesNoUnknownYesNo?
Original DesignYesNoYesYesNoYes
OwnershipGermanyU.K.JapanGermanyU.K.Japan
AssemblyGermanyU.S.JapanGermanyU.S.Japan
Field Tested50+ YearsLess than 4 Years30+ Years50+ YearsLess than 4 Years30+ Years
Technical SupportU.S. BasedU.S. BasedUS BasedU.S. BasedU.S. BasedU.S. Based
Material Capacity100 g100 g100g300 g300 g250g
Max container volume515ml515ml100ml1200ml1200ml300ml
Power Supply110/220 V, 50/60 Hz110/220 V, 50/60 Hz120 V , 50/60 Hz110/220 V, 50/60 Hz110/220 V, 50/60 Hz120 V , 50/60 Hz
Weight70 lbs (32 kg)75 lbs (34 kg)33lbs (15kg)156 lbs (71 kg)330 lbs (150 kg)40lbs (18kg)
Machine Dimensions12″ x 16″ x 18″ (WxDxH)12″ x 16″ x 21″ (WxDxH)10″ x 10″ x 13″ (WxDxH)17″ x 25″ x 29″ (WxDxH)17″ x 25″ x 27″ (WxDxH)12″ x 13″ x 15″ (WxDxH)
ModelSMART DAC 1100.3 FVZ-LRSMART DAC 1500.3 FVZ-LRSMART DAC 2000.3 FVZ-LR
 All around lab useAll around lab useSpecialty production
Commonly used forSpecific gravity <1.0 g/ccSpecific gravity ~0.8 – 1.5 g/ccSpecific gravity > 1.5 g/cc
 Very high viscosities (>5M cps)Stainless steel containersStainless steel containers

Performance
Max RPM120011001000
Material capacityup to 920gup to 1320gup to 1820g
Largest container volume3.8l3.8l3.8l
Smallest container volume<10ml<10ml<10ml
ProgramsUp to 500 (Pro version)Up to 500 (Pro version)Up to 500 (Pro version)
Max runtime per cycle30min30min30min
Adjustable counterweightStandardStandardStandard

Design
User interfaceTouchscreenTouchscreenTouchscreen
Width650mm (25.6″)650mm (25.6″)650mm (25.6″)
Width on console650mm (25.6″)650mm (25.6″)650mm (25.6″)
Height on console (lid closed)1143mm (45.00″)1143mm (45.00″)1143mm (45.00″)
Height on console (lid open)1643mm (64.68″)1643mm (64.68″)1643mm (64.68″)
Depth840mm (33.07″)840mm (33.07″)840mm (33.07″)
Weight 195/429 (kg/lb)195/429 (kg/lb)200/440 (kg/lb)
Input Power 120V or 230V120V or 230V120V or 230V
Peak power consumption1500W1500W1500W
Vacuum interfaceAccessoryAccessoryAccessory

Capabilities
Liquid mixing (< ~300k cps)
Paste mixing (> ~300k cps)
High viscosity mixing (> ~10M cps)
Powder mixing
Mix liquid with paste
Mix powder with paste
Mix liquid with powder
Mixing multiple samples at onceAccessoryAccessoryAccessory
Dispersion
Milling & pulverizationAccessoryAccessoryAccessory
Stroboscopic process monitoring
Live material temperature monitoringTemperature packageTemperature packageTemperature package
Cooling & temperature controlTemperature packageTemperature packageTemperature package
Variable counterrotationCounterrotation packageCounterrotation packageCounterrotation package
Manufacturing optimized interfaceManufacturing packageManufacturing packageManufacturing package
Deairing & bubble removal
Vacuum degassingAccessoryAccessoryAccessory
Cartridge deairingAccessoryAccessoryAccessory
Syringe deairing (1 or multiple)AccessoryAccessoryAccessory

Custom options:  Remote control, Robotic, exhaust port for connection to hood / “elephant trunk”, and many more…
