Hauschild SpeedMixer® Robotic and CM Solutions
Revolutionizing Material Mixing with Robotic Integration and Vacuum Technology
The Hauschild SpeedMixer® Robot combines advanced SMART DAC technology with robotic automation, delivering unmatched precision and efficiency. Designed for high-performance mixing under vacuum conditions, this innovation minimizes manual handling, enhances safety, and ensures consistent results. Ideal for industries demanding speed, accuracy, and repeatability in complex material formulations.
The Hauschild SpeedMixer® Custom Made solutions delivers bespoke engineering for specialized mixing needs. From structural modifications to performance enhancements and software upgrades, every CM system is designed to match your exact process requirements—whether for different container sizes, extended mixing times, or remote-controlled operation in demanding production environments.
Decades of experience designing customized and robotic mixing solutions tailored to complex laboratory and industrial processes.
Delivering customized Hauschild SpeedMixer® solutions is crucial when standard equipment falls short. With varying materials, batch sizes, and environments, precise mixing often relies on tailored mechanics and control. Hauschild’s expertise in custom engineering enables reliable adaptation of lab methods to industrial workflows.
Customization for unique containers, viscosities, or safety requirements ensures consistent results and higher process stability.
This flexibility helps customers protect formulations and maintain reproducibility across all stages of development and production.

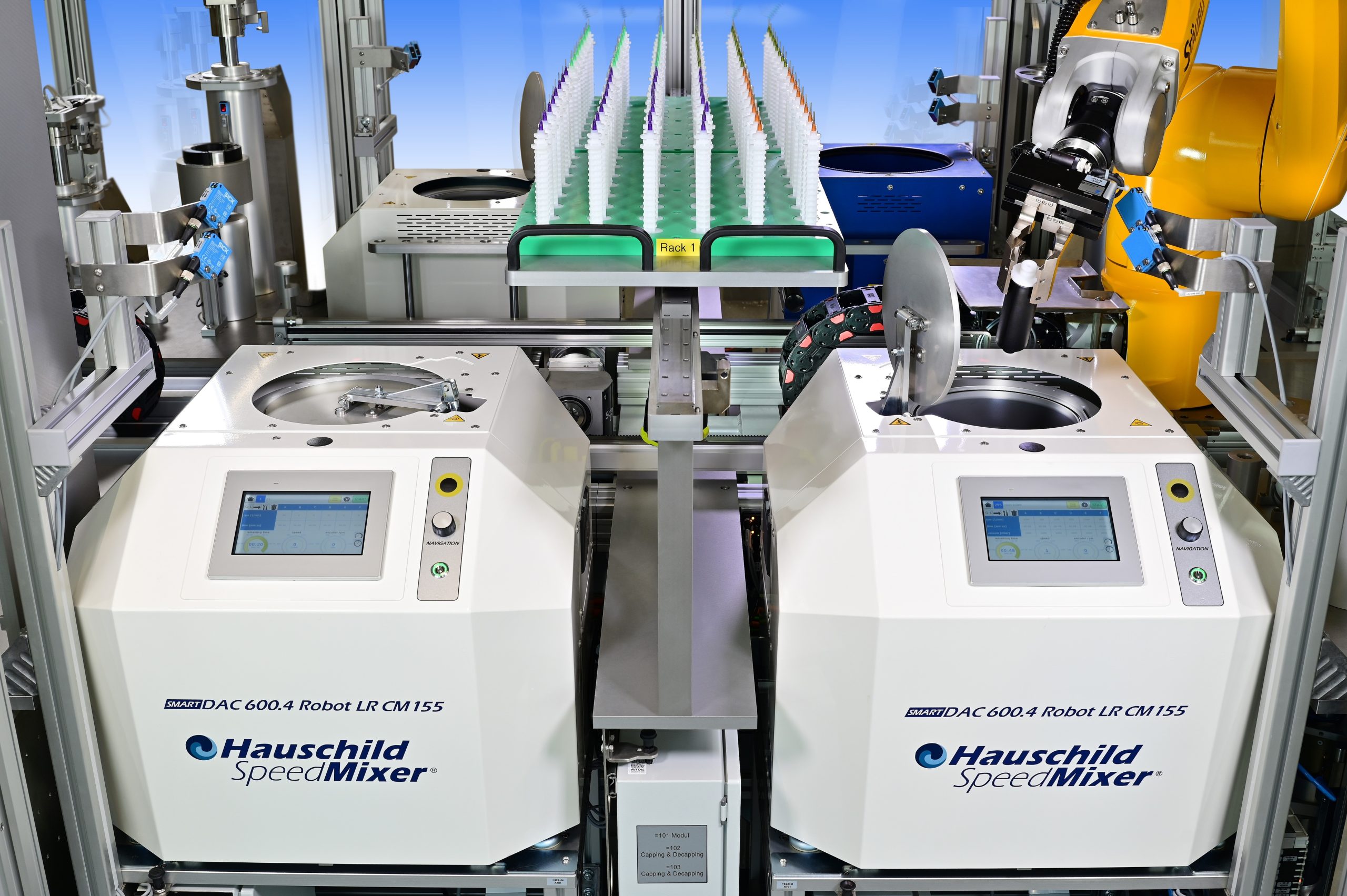

The robotic Hauschild SpeedMixer® models are designed for customers needing automation and traceability. By combining DAC mixing with robotics, Hauschild enables workflows that enhance reliability while reducing operator influence.
Our new SMART DAC Robotic vacuum system integrates vacuum mixing with robotic handling, minimizes air inclusion and ensures consistent quality.
Robotic SpeedMixerTM systems seamlessly integrate into production lines and support safe, reproducible operation.
Technical specifications
SMART DAC Robot STANDARD
| Model | SMART DAC 250.3 Robot LR | SMART DAC 400.3 Robot LR | SMART DAC 600.3 Robot LR | SMART DAC 700.3 Robot LR |
| Mixing speed – RPM | 50 – 2500 | 50 – 2400 | 50 – 2200 | 50 – 2000 |
| Gross mixing capacity | up to 250 g (0.55 lb.) | up to 400 g (0.88 lb.) | up to 600 g (1.32 lb.) | up to 700 g (1.54 lb.) |
| Vacuum | No | |||
| Programs | 300 (500 Pro Version) | |||
| Mixing Zones/Steps | 6 (12 Pro Version) | |||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | |||
| User interface | Touchscreen 7″ (10″ Optional) | |||
| Width | 650 mm (25,59″) | |||
| Height (lid open) | 970 mm (38,18″) | |||
| Depth | 620 mm (24,4″) | |||
| Weight | 106 kg (234 lb.) | 110 kg (242 lb.) | 112 kg (247 lb.) | 114 kg (251 lb.) |
| Input power | 120 V & 230 V | |||
| Model | SMART DAC 800.3 Robot LR | SMART DAC 1100.3 Robot | SMART DAC 1500.3 Robot | SMART DAC 2000.3 Robot |
| Mixing speed – RPM | 50 – 1850 | 50 – 1700 | 50 – 1400 | 50 – 1200 |
| Gross mixing capacity | up to 800 g (1.76 lb.) | up to 1100 g (2.43 lb.) | up to 1500 g (3.31 lb.) | up to 2000 g(4.41 lb.) |
| Vacuum | No | |||
| Programs | 300 (500 Pro Version) | |||
| Mixing Zones/Steps | 6 (12 Pro Version) | |||
| Max rutime per cycle | 10 min. (30 min. Pro Version) | |||
| User interface | Touchscreen 7″ (10″ Optional) | |||
| Width | 650 mm (25,59″) | |||
| Height (lid open) | 970 mm (38,18″) | |||
| Depth | 620 mm (24,4″) | |||
| Weight | 116 kg (256 lb.) | 118 kg (260 lb.) | 120 kg (265 lb.) | 125 kg (276 lb.) |
| Input power | 120 V & 230 V | |||
SMART DAC Robot VACUUM
| Model | SMART DAC 250.4 Robot LR | SMART DAC 400.4 Robot LR | SMART DAC 600.4 Robot LR | SMART DAC 700.4 Robot LR |
| Mixing speed – RPM | 50 – 2500 | 50 – 2400 | 50 – 2200 | 50 – 2000 |
| Gross mixing capacity | up to 250 g (0.55 lb.) | up to 400 g (0.88 lb.) | up to 600 g (1.32 lb.) | up to 700 g (1.54 lb.) |
| Vacuum | Yes | |||
| Programs | 300 (500 Pro Version) | |||
| Mixing Zones/Steps | 6 (12 Pro Version) | |||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | |||
| User interface | Touchscreen 7″ (10″ Optional) | |||
| Width | 650 mm (25,59″) | |||
| Height (lid open) | 970 mm (38,18″) | |||
| Depth | 620 mm (24,4″) | |||
| Weight | 108 kg (238 lb.) | 120 kg (267 lb.) | 122 kg (269 lb.) | 124 kg (273 lb.) |
| Input power | 120 V & 230 V | |||
| Model | SMART DAC 800.4 Robot LR | SMART DAC 1100.4 Robot | SMART DAC 1500.4 Robot | SMART DAC 2000.4 Robot |
| Mixing speed – RPM | 50 – 1850 | 50 – 1700 | 50 – 1400 | 50 – 1200 |
| Gross mixing capacity | up to 800 g (1.76 lb.) | up to 1100 g (2.43 lb.) | up to 1500 g (3.31 lb.) | up to 2000 g (4.41 lb.) |
| Vacuum | Yes | |||
| Programs | 300 (500 Pro Version) | |||
| Mixing Zones/Steps | 6 (12 Pro Version) | |||
| Max rutime per cycle | 10 min. (30 min. Pro Version) | |||
| User interface | Touchscreen 7″ (10″ Optional) | |||
| Width | 650 mm (25,59″) | |||
| Height (lid open) | 970 mm (38,18″) | |||
| Depth | 620 mm (24,4″) | |||
| Weight | 126 kg (278 lb.) | 128 kg (282 lb.) | 130 kg (287 lb.) | 135 kg (298 lb.) |
| Input power | 120 V & 230 V | |||
SMART DAC Robot High Volume
| Model | SMART DAC 1100.3 Robot LR | SMART DAC 1500.3 Robot LR | SMART DAC 2000.3 Robot LR |
| Mixing speed – RPM | 300 – 1200 | 300 – 1100 | 300 – 1000 |
| Gross mixing capacity | up to 1100 g (2.43 lb.) | up to 1500 g (3.31 lb.) | up to 2000 g (4.41 lb.) |
| Vacuum | No | ||
| Programs | 300 (500 Pro Version) | ||
| Mixing Zones/Steps | 6 (12 Pro Version) | ||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | ||
| User interface | Touchscreen 7″ (10″ Optional) | ||
| Width | 650 mm (25,59″) | ||
| Height (lid open) | 1300 mm (51,18″) | ||
| Depth | 840 mm (33,07″) | ||
| Weight | 190 kg (419 lb.) | 195 kg (430 lb.) | 200 kg (441 lb.) |
| Input power | 120 V & 230 V | ||
| Model | SMART DAC 1100.4 Robot LR | SMART DAC 1500.4 Robot LR | SMART DAC 2000.4 Robot LR |
| Mixing speed – RPM | 300 – 1200 | 300 – 1100 | 300 – 1000 |
| Gross mixing capacity | up to 1100 g (2.43 lb.) | up to 1500 g (3.31 lb.) | up to 2000 g (4.41 lb.) |
| Vacuum | Yes | ||
| Programs | 300 (500 Pro Version) | ||
| Mixing Zones/Steps | 6 (12 Pro Version) | ||
| Max rutime per cycle | 10 min. (30 min. Pro Version) | ||
| User interface | Touchscreen 7″ (10″ Optional) | ||
| Width | 650 mm (25,59″) | ||
| Height (lid open) | 1300 mm (51,18″) | ||
| Depth | 840 mm (33,07″) | ||
| Weight | 210 kg (463 lb.) | 215 kg (474 lb.) | 220 kg (485 lb.) |
| Input power | 120 V & 230 V | ||
Hauschild SpeedMixer® Custom Made Solutions
Tailor-Made Mixing Solutions for Unique Industrial Requirements
The Hauschild SpeedMixer® SMART DAC CM version offers customized engineering for specialized mixing needs. Each CM system is designed to meet specific process requirements, from varying container sizes to remote-controlled operation in demanding environments.
Our Custom Made program transforms the proven SMART DAC platform into a tailored system for unique operational challenges across industries.
Structural modifications include adjustable rotating arms and machines adapted for remote operation with cable lengths up to 20 meters.
Functional add-ons include custom mixing baskets, multi-holder configurations, and external safety circuits. Industry-specific adaptations serve cosmetics, automotive, electronics, and aerospace applications, with reinforced cleanroom housings and conductive baskets for energetic materials.
The SMART DAC robotic vacuum system integrates vacuum mixing with automated loading and unloading, supporting sensitive materials, minimizing air inclusion, and delivering consistent quality at scale.
Custom software packages enable remote operation, error recovery, and programmable profiles for seamless integration into your production workflow.
LabCatch® is a new SW platform that supports trial preparation, gathers data throughout execution cycles, provides results in reports, helps you maintaining your devices always in perfect shape, and integrates with other systems (ERP, LIMS, MES) utilizing modern industry 5.0 technology and a powerful API.
Applications
How does Hauschild develop application & material science solutions?
Hauschild SpeedMixer® line up
From small volume method development to kilogram scale production, the following ranges share consistent DAC motion. This supports direct transfer of mixing parameters across the SpeedMixerTM portfolio.
150-250 g
Benchtop
Compact units for small volume R&D and QC work, typically from a few grams up to approximately 250 g, suitable for rapid screening of formulations and pigment dispersions.
250–2000 g
Enhanced features
Medium volume SMART systems with recipe management, multi segment profiles and optional vacuum, designed for routine laboratory and pilot scale operation.
1/1.5/2 kg
Enhanced features
Extends the medium range platform toward higher payloads, bridging laboratory development and pre production batches while retaining detailed control of acceleration and dwell profiles.
3/5/10 kg
Small production

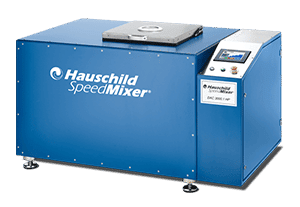

Large capacity systems for production or pilot lines, enabling homogeneous mixing up to several kilograms in sealed containers with the same DAC motion as laboratory units.
5/10/15/20/30 kg
Enhanced features
High volume SMART units for production environments that require full recipe control, connectivity with higher level systems and diagnostic tools for critical materials and processes.
