SMART DAC L-Series NEW!
Production with higher volume and enhanced features
Technical specifications
Single basket
| Model | SMART DAC 5000.5 FVZ | SMART DAC 10000.5 FVZ | SMART DAC 15000.5 FVZ |
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | up to 5000 g (11.02 lb.) | up to 10000 g (22.04 lb.) | up to 15000 g (33.06 lb.) |
| Vacuum | No | ||
| Programs | 300 (500 Pro Version) | ||
| Mixing Zones/Steps | 6 (12 Pro Version) | ||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | ||
| User interface | Touchscreen 10″ | ||
| Width | 1906 mm (75″) | ||
| Width Open Lid | 2440 mm (96″) | ||
| Height | 1255 mm (49,4″) | ||
| Depth | 1374 mm (54″) | ||
| Weight | 2000 kg (4409 lb.) | 2100 kg (4629 lb.) | 2100 kg (4629 lb.) |
| Input power | 400 V/ 50-60 Hz & 480 V / 50-60 Hz | ||
| Model | SMART DAC 5000.6 VAC-P | SMART DAC 10000.6 VAC-P | SMART DAC 15000.6 VAC-P |
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | up to 5000 g (11.02 lb.) | up to 10000 g (22.04 lb.) | up to 15000 g (33.06 lb.) |
| Vacuum | Yes | ||
| Programs | 300 (500 Pro Version) | ||
| Mixing Zones/Steps | 6 (12 Pro Version) | ||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | ||
| User interface | Touchscreen 10″ | ||
| Width | 1906 mm (75″) | ||
| Width Open Lid | 2440 mm (96″) | ||
| Height | 1255 mm (49,4″) | ||
| Depth | 1374 mm (54″) | ||
| Weight | 2100 kg (4629 lb.) | 2200 kg (4850 lb.) | 2200 kg (4850 lb.) |
| Input power | 400 V/ 50-60 Hz & 480 V / 50-60 Hz | ||
Double basket
| Model | SMART DAC 5000.5 FVZ DB | SMART DAC 10000.5 FVZ DB | SMART DAC 15000.5 FVZ DB |
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | up to 2 x 5000 g (2 x 11.02 lb.) | up to 2 x 10000 g (2 x 22.04 lb.) | up to 2 x 15000 g (2 x 33.06 lb.) |
| Vacuum | No | ||
| Programs | 300 (500 Pro Version) | ||
| Mixing Zones/Steps | 6 (12 Pro Version) | ||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | ||
| User interface | Touchscreen 10″ | ||
| Width | 1906 mm (75″) | ||
| Width Open Lid | 2440 mm (96″) | ||
| Height | 1255 mm (49,4″) | ||
| Depth | 1374 mm (54″) | ||
| Weight | 2100 kg (4629 lb.) | 2200 kg (4850 lb.) | 2200 kg (4850 lb.) |
| Input power | 400 V/ 50-60 Hz & 480 V / 50-60 Hz | ||
| Model | SMART DAC 5000.6 VAC-P DB | SMART DAC 10000.6 VAC-P DB | SMART DAC 15000.6 VAC-P DB |
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | up to 2 x 5000 g (2 x 11.02 lb.) | up to 2 x 10000 g (2 x 22.04 lb.) | up to 2 x 15000 g (2 x 33.06 lb.) |
| Vacuum | Yes | ||
| Programs | 300 (500 Pro Version) | ||
| Mixing Zones/Steps | 6 (12 Pro Version) | ||
| Max runtime per cycle | 10 min. (30 min. Pro Version) | ||
| User interface | Touchscreen 10″ | ||
| Width | 1906 mm (75″) | ||
| Width Open Lid | 2440 mm (96″) | ||
| Height | 1255 mm (49,4″) | ||
| Depth | 1374 mm (54″) | ||
| Weight | 2200 kg (4850 lb.) | 2300 kg (5070 lb.) | 2300 kg (5070 lb.) |
| Input power | 400 V/ 50-60 Hz & 480 V / 50-60 Hz | ||
LabCatch® is a new SW platform that supports trial preparation, gathers data throughout execution cycles, provides results in reports, helps you maintaining your devices always in perfect shape, and integrates with other systems (ERP, LIMS, MES) utilizing modern industry 5.0 technology and a powerful API.
Applications
How does Hauschild develop application & material science solutions?
Hauschild SpeedMixer® line up
From small volume method development to kilogram scale production, the following ranges share consistent DAC motion. This supports direct transfer of mixing parameters across the SpeedMixerTM portfolio.
150-250 g
Benchtop
Compact units for small volume R&D and QC work, typically from a few grams up to approximately 250 g, suitable for rapid screening of formulations and pigment dispersions.
250–2000 g
Enhanced features
Medium volume SMART systems with recipe management, multi segment profiles and optional vacuum, designed for routine laboratory and pilot scale operation.
1/1.5/2 kg
Enhanced features
Extends the medium range platform toward higher payloads, bridging laboratory development and pre production batches while retaining detailed control of acceleration and dwell profiles.
3/5/10 kg
Small production
Large capacity systems for production or pilot lines, enabling homogeneous mixing up to several kilograms in sealed containers with the same DAC motion as laboratory units.
5/10/15/20/30 kg
Enhanced features
High volume SMART units for production environments that require full recipe control, connectivity with higher level systems and diagnostic tools for critical materials and processes.
Innovation. Reputation. Trust.
Commonly Used In:
Top Features
Dual Asymmetrical Centrifugal (DAC) mixing – A closed disposable container is rotated around a primary axis. The container is simultaneously counterrotated around on its own Y axis, creating a powerful mixing vortex. This result is fast, homogeneous, repeatable mixing and bubble removal.
The machine’s touchscreen display makes it easy to set, save, and lock programs. This ensures that precisely optimized mixing and degassing methods can be accurately and repeatably reproduced. With minimal training, any operator can achieve exactly the same results. The optional PC interface software allows remote control of the equipment full documentation of all mixing activities for traceability purposes.
VAC series Hauschild SpeedMixer® equipment features the ability to pull and regulate vacuum throughout the process. This removes microbubbles, dissolved air, and can even strip volatile content or purge solvent. The centrifugal motion combined with constant exposure of new surface area makes the process much faster than conventional vacuum degassing methods. It also helps prevent messy boil-overs. The equipment is compatible with any vacuum source and will automatically power & control vacuum pumps up to 700W.
Meet Our U.S. Sales & Support Team
Coast to Coast support from our Michigan headquarters.
Maintenance. Parts. Service & more.
Additional Features
- Multi-zone programming
- No need to counter balance
- User access control
- Program backup to an external drive
- Vent with inert gas (VAC models only)
- Engineering proven in the field to last for decades
- Built with safety features that meet or exceed industry standards & requirements (NRTL field labeling optional)
- Ergonomic design continually optimized based on user feedback since 1973
- Compatible with hundreds of accessories to help optimize performance for your application(s)
- Customizable for innovative applications that require innovative solutions
The Hauschild team will support you in selecting the best machine and accessories for your application.
As a Hauschild customer you will also receive training and technical support from our technical staff.
Case Study
Eliminating Air Bubble Defects in Implantable Medical Devices: A Case Study on Automated Mixing and Degassing
This case study explores how a medical device manufacturer overcame persistent entrained air bubble issues in their product through process optimization and automation. By replacing manual mixing and syringe filling with an automated mixing and degassing process using the Hauschild SpeedMixer®, the company successfully eliminated defects, reduced scrap and rework rates, improved product quality, and enhanced employee satisfaction.
The medical device manufacturer faced significant challenges with entrained air bubbles in their implantable medical devices, resulting in costly rework or scrapping of the parts. The company identified the root cause of the problem as inconsistencies in the manual mixing and syringe filling processes, which allowed air to be trapped in the epoxy material despite vacuum degassing attempts.
To address the air bubble issue, the company adopted an automated mixing and degassing process using the Hauschild SpeedMixer®. This technology ensured a standardized and homogenous mix of the 2-part epoxy, regardless of the operator. The Vacuum SpeedMixer was then utilized degas the epoxy directly within the dispensing syringes. By removing all bubbles, dissolved air, and moisture/volatile content from the material within the syringes, they were able to completely prevent bubble formation during the heat curing process.
The implementation of the automated mixing and degassing process yielded significant positive outcomes:
Elimination of Air Bubbles: The primary objective of the new process was achieved as it effectively eliminated entrained air bubbles in the finished medical device. This reduction in defects led to improved product quality and significantly reduced scrap and rework rates.
Enhanced Efficiency: The new automated process streamlined operations, saving valuable time previously spent on manual mixing and minimizing production delays caused by defects. The reduction in rework also allowed for more predictable production schedules.
Improved Product Quality: With entrained air bubbles eliminated, the medical devices achieved a higher level of consistency and reliability. This improvement in quality was essential for maintaining the company’s reputation and meeting stringent industry standards.
Increased Employee Satisfaction: Operators and technicians were pleased with the transition to the automated process. The new system reduced the manual labor involved, making the work environment cleaner and more efficient. Moreover, the standardized mixing program ensured consistent results across all operators, mitigating variations caused by human error.
Learn About Our Financing Options
Secondary Features and Benefits - Value
Best in class performance, reliability, and value
Since inventing the technology in 1974, the team at Hauschild have been engineering and manufacturing with a focus on quality, performance, safety, and reliability. Hauschild SpeedMixer® equipment is known for being the most powerful, versatile, and safe lab mixer / specialty production mixer available. It is also one of the few planetary centrifugal mixers that has been proven in the field to last for decades with minimal maintenance.
Saves time & material – Protects the workforce
The Hauschild SpeedMixer® mixes quickly and is compatible with a variety of single use mixing cups. This saves time associated with mixing, as well as time, solvents, and other materials associated with cleanup. Unlike blade mixers, DAC mixers offer the ability to size batches/mixing containers based on what is needed for testing. This eliminates significant material waste.
Conventional mixing equipment & methods present several hazards to the workforce such as exposure to material, exposure to cleaning solvents / solvent vapors, and risk of repetitive strain injury (RSI). An automated mixing process utilizing Hauschild SpeedMixer® equipment, along with proper PPE and material handling practices, protect the operator from these sources of danger and can help reduce the rick of a Lost Time Injury (LTI).
Feature Applications and Video
0:16
0:16
0:16
Featured accessories
Numerous Options

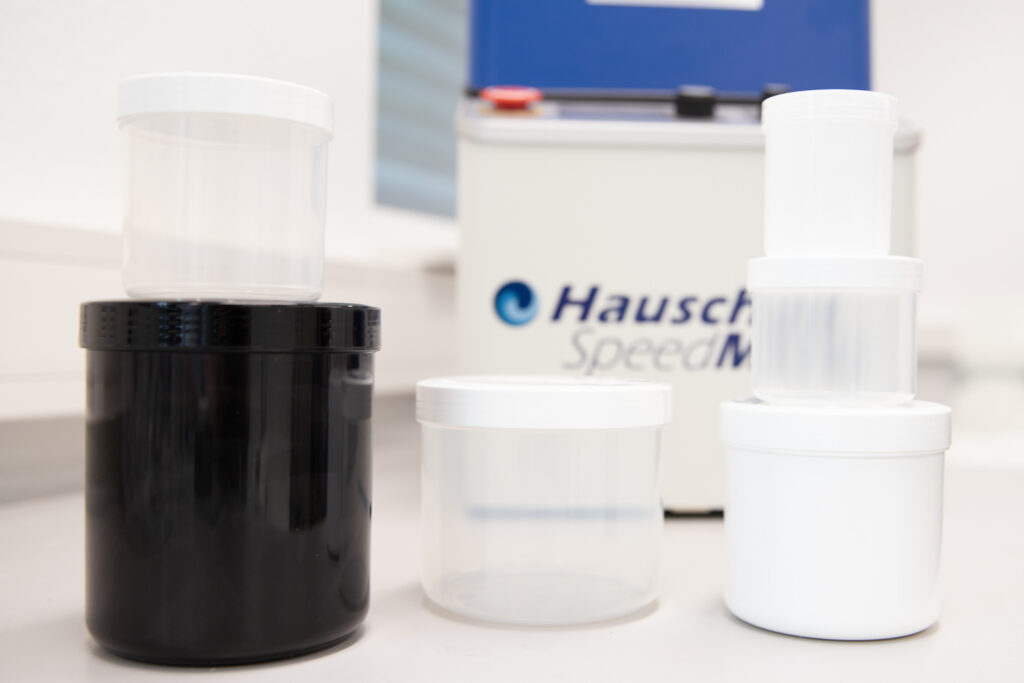

Depending on the mixing weight and feeling volume different cups are available for your Hauschild SpeedMixer®. All mixing cups can be used as disposable items. Hauschild offers jars in several colors, beside transparent, white and black, which is suitable for photo sensitive material. The most used jars are made of polypropylene (PP) due to its high resistance to the temperature and the low chemical reactivity. Dimensions of the cups and buckets go from few ml to up to 16l of normal capacity.
- PP 50, 100, 250, 300
- Max 40, 60, 100, 200, 300
- Stainless Steel 30, 100, 500, 1000
Standard and Customized
To help the customers obtaining the best results with their Hauschild SpeedMixer®, we continuously work on the research and development of accessories. Custom made adapters have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you.have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you finding the best suitable accessory for your machine.
- PP 50, 100, 250, 300
- Max 40, 60, 100, 200
- Multi holders
- Cartridge & syringe holders
- Vial holder
Accessories
- Lever Press
- SpeedDisks
Data sheets - SMART DAC L-Series NEW!
SMART DAC 5000.5 FVZ & SMART DAC 5000.6 VAC-P
SMART DAC 10000.5 FVZ & SMART DAC 10000.6 VAC-P
SMART DAC 15000.5 FVZ & SMART DAC 15000.6 VAC-P
SMART DAC 5000.5 FVZ DB & SMART DAC 5000.6 VAC-P DB
SMART DAC 10000.5 FVZ DB & SMART DAC 10000.6 VAC-P DB
SMART DAC 15000.5 FVZ DB & SMART DAC 15000.6 VAC-P DB
Technical specs & capability comparison
Single Basket
| Model | SMART DAC 5000.5 FVZ | SMART DAC 10000.5 FVZ | SMART DAC 15000.5 FVZ |
| Specialty manufacturing | Specific gravity > 1.5 g/cc | Cosmetics | |
| Commonly used for | Medical devices | Explosives & High Energetics | Battery slurries |
| Pharmaceuticals | conductive pastes | Ceramics | |
| Performance | |||
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | 5000g (11,02 lb.) | 10000g (22, 4 lb.) | 15000g (33,07 lb.) |
| Largest container volume | 22 l (5 gal.) | 22 l (5 gal.) | 22 l (5 gal.) |
| Smallest container volume | 10 l (2.64 gal) | 10 l (2.64 gal) | 10 l (2.64 gal) |
| Programs | 300 (500 Pro Version) | 300 (500 Pro Version) | 300 (500 Pro Version) |
| Mixing zones per program | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) |
| Max runtime per cycle | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) |
| Adjustable counterweight | ✓ | ✓ | ✓ |
| Design | |||
| User interface | Touchscreen 10″ | Touchscreen 10″ | Touchscreen 10″ |
| Width (lid closed) | 1906 mm (75″) | 1906 mm (75″) | 1906 mm (75″) |
| Width (lid open) | 2440 mm (96″) | 2440 mm (96″) | 2440 mm (96″) |
| Width on console | N.A. | N.A. | N.A. |
| Height (lid closed) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height (lid open) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height on console (lid closed) | N.A. | N.A. | N.A. |
| Height on console (lid open) | N.A. | N.A. | N.A. |
| Depth | 1347 mm (54″) | 1347 mm (54″) | 1347 mm (54″) |
| Depth on console | N.A. | N.A. | N.A. |
| Weight | 2000kg (4409 lb.) | 2100kg (4629 lb.) | 2100kg (4629 lb.) |
| Input Power | 3 phase 480V | 3 phase 480V | 3 phase 480V |
| Peak power consumption | 9 KW | 11 KW | 11 KW |
| Vacuum interface | N.A. | N.A. | N.A. |
| Capabilities | |||
| Liquid mixing (< ~300k cps) | ✓ | ✓ | ✓ |
| Paste mixing (> ~300k cps) | ✓ | ✓ | ✓ |
| High viscosity mixing (> ~10M cps) | ✓ | ✓ | ✓ |
| Powder mixing | ✓ | ✓ | ✓ |
| Mix liquid with paste | ✓ | ✓ | ✓ |
| Mix powder with paste | ✓ | ✓ | ✓ |
| Mix liquid with powder | ✓ | ✓ | ✓ |
| Mixing multiple samples at once | Accessory | Accessory | Accessory |
| Dispersion | ✓ | ✓ | ✓ |
| Milling & pulverization | Accessory | Accessory | Accessory |
| Stroboscopic process monitoring | No | No | No |
| Live material temperature monitoring | Available | Available | Available |
| Cooling & temperature control | No | No | No |
| Variable counterrotation | Available | Available | Available |
| Manufacturing optimized interface | Manufacturing package | Manufacturing package | Manufacturing package |
| Deairing & bubble removal | ✓ | ✓ | ✓ |
| Vacuum degassing | No | No | No |
| Cartridge deairing | Accessory | Accessory | Accessory |
| Syringe deairing (1 or multiple) | Accessory | Accessory | Accessory |
| Model | SMART DAC 5000.6 VAC-P | SMART DAC 10000.6 VAC-P | SMART DAC 15000.6 VAC-P |
| Specialty manufacturing | Specific gravity > 1.5 g/cc | Cosmetics | |
| Commonly used for | Medical devices | Explosives & High Energetics | Battery slurries |
| Pharmaceuticals | conductive pastes | Ceramics | |
| Performance | |||
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | 5000g (11,02 lb.) | 10000g (22, 4 lb.) | 15000g (33,07 lb.) |
| Largest container volume | 22 l (5 gal.) | 22 l (5 gal.) | 22 l (5 gal.) |
| Smallest container volume | 10 l (2.64 gal) | 10 l (2.64 gal) | 10 l (2.64 gal) |
| Programs | 300 (500 Pro Version) | 300 (500 Pro Version) | 300 (500 Pro Version) |
| Mixing zones per program | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) |
| Max runtime per cycle | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) |
| Adjustable counterweight | ✓ | ✓ | ✓ |
| Design | |||
| User interface | Touchscreen 10″ | Touchscreen 10″ | Touchscreen 10″ |
| Width (lid closed) | 1906 mm (75″) | 1906 mm (75″) | 1906 mm (75″) |
| Width (lid open) | 2440 mm (96″) | 2440 mm (96″) | 2440 mm (96″) |
| Width on console | N.A. | N.A. | N.A. |
| Height (lid closed) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height (lid open) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height on console (lid closed) | N.A. | N.A. | N.A. |
| Height on console (lid open) | N.A. | N.A. | N.A. |
| Depth | 1347 mm (54″) | 1347 mm (54″) | 1347 mm (54″) |
| Depth on console | N.A. | N.A. | N.A. |
| Weight | 2100kg (4629 lb.) | 2200kg (4850 lb.) | 2200kg (4850 lb.) |
| Input Power | 3 phase 480V | 3 phase 480V | 3 phase 480V |
| Peak power consumption | 9 KW | 11 KW | 11 KW |
| Vacuum interface | N.A. | N.A. | N.A. |
| Capabilities | |||
| Liquid mixing (< ~300k cps) | ✓ | ✓ | ✓ |
| Paste mixing (> ~300k cps) | ✓ | ✓ | ✓ |
| High viscosity mixing (> ~10M cps) | ✓ | ✓ | ✓ |
| Powder mixing | ✓ | ✓ | ✓ |
| Mix liquid with paste | ✓ | ✓ | ✓ |
| Mix powder with paste | ✓ | ✓ | ✓ |
| Mix liquid with powder | ✓ | ✓ | ✓ |
| Mixing multiple samples at once | Accessory | Accessory | Accessory |
| Dispersion | ✓ | ✓ | ✓ |
| Milling & pulverization | Accessory | Accessory | Accessory |
| Stroboscopic process monitoring | Available | Available | Available |
| Live material temperature monitoring | Available | Available | Available |
| Cooling & temperature control | No | No | No |
| Variable counterrotation | ✓ | ✓ | ✓ |
| Manufacturing optimized interface | Manufacturing package | Manufacturing package | Manufacturing package |
| Deairing & bubble removal | ✓ | ✓ | ✓ |
| Vacuum degassing | ✓ | ✓ | ✓ |
| Cartridge deairing | Accessory | Accessory | Accessory |
| Syringe deairing (1 or multiple) | Accessory | Accessory | Accessory |
Double basket
| Model | SMART DAC 5000.5 FVZ DB | SMART DAC 10000.5 FVZ DB | SMART DAC 15000.5 FVZ DB |
| Specialty manufacturing | Specific gravity > 1.5 g/cc | Cosmetics | |
| Commonly used for | Medical devices | Explosives & High Energetics | Battery slurries |
| Pharmaceuticals | conductive pastes | Ceramics | |
| Performance | |||
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | 2 x 5000g (2 x 11,02 lb.) | 2 x 10000g (2 x 22, 04 lb.) | 2 x 15000g (2 x 33,06 lb.) |
| Largest container volume | 2 x 22 l (5 gal.) | 2 x 22 l (5 gal.) | 2 x 22 l (5 gal.) |
| Smallest container volume | 10 l (2.64 gal) | 10 l (2.64 gal) | 10 l (2.64 gal) |
| Programs | 300 (500 Pro Version) | 300 (500 Pro Version) | 300 (500 Pro Version) |
| Mixing zones per program | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) |
| Max runtime per cycle | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) |
| Adjustable counterweight | ✓ | ✓ | ✓ |
| Design | |||
| User interface | Touchscreen 10″ | Touchscreen 10″ | Touchscreen 10″ |
| Width (lid closed) | 1906 mm (75″) | 1906 mm (75″) | 1906 mm (75″) |
| Width (lid open) | 2440 mm (96″) | 2440 mm (96″) | 2440 mm (96″) |
| Width on console | N.A. | N.A. | N.A. |
| Height (lid closed) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height (lid open) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height on console (lid closed) | N.A. | N.A. | N.A. |
| Height on console (lid open) | N.A. | N.A. | N.A. |
| Depth | 1347 mm (54″) | 1347 mm (54″) | 1347 mm (54″) |
| Depth on console | N.A. | N.A. | N.A. |
| Weight | 2100kg (4.629 lb.) | 2200kg (4.849 lb.) | 2200kg (4.849 lb.) |
| Input Power | 3 phase 480V | 3 phase 480V | 3 phase 480V |
| Peak power consumption | 9 KW | 11 KW | 11 KW |
| Vacuum interface | N.A. | N.A. | N.A. |
| Capabilities | |||
| Liquid mixing (< ~300k cps) | ✓ | ✓ | ✓ |
| Paste mixing (> ~300k cps) | ✓ | ✓ | ✓ |
| High viscosity mixing (> ~10M cps) | ✓ | ✓ | ✓ |
| Powder mixing | ✓ | ✓ | ✓ |
| Mix liquid with paste | ✓ | ✓ | ✓ |
| Mix powder with paste | ✓ | ✓ | ✓ |
| Mix liquid with powder | ✓ | ✓ | ✓ |
| Mixing multiple samples at once | Accessory | Accessory | Accessory |
| Dispersion | ✓ | ✓ | ✓ |
| Milling & pulverization | Accessory | Accessory | Accessory |
| Stroboscopic process monitoring | Available | Available | Available |
| Live material temperature monitoring | Available | Available | Available |
| Cooling & temperature control | No | No | No |
| Variable counterrotation | ✓ | ✓ | ✓ |
| Manufacturing optimized interface | Manufacturing package | Manufacturing package | Manufacturing package |
| Deairing & bubble removal | ✓ | ✓ | ✓ |
| Vacuum degassing | No | No | No |
| Cartridge deairing | Accessory | Accessory | Accessory |
| Syringe deairing (1 or multiple) | Accessory | Accessory | Accessory |
| Model | SMART DAC 5000.6 VAC-P DB | SMART DAC 10000.6 VAC-P DB | SMART DAC 15000.6 VAC-P DB |
| Specialty manufacturing | Specific gravity > 1.5 g/cc | Cosmetics | |
| Commonly used for | Medical devices | Explosives & High Energetics | Battery slurries |
| Pharmaceuticals | conductive pastes | Ceramics | |
| Performance | |||
| Mixing speed – RPM | 50 – 500 | 50 – 450 | 50 – 450 |
| Gross mixing capacity | 2 x 5000g (2 x 11,02 lb.) | 2 x 10000g (2 x 22, 04 lb.) | 2 x 15000g (2 x 33,06 lb.) |
| Largest container volume | 2 x 22 l (5 gal.) | 2 x 22 l (5 gal.) | 2 x 22 l (5 gal.) |
| Smallest container volume | 10 l (2.64 gal) | 10 l (2.64 gal) | 10 l (2.64 gal) |
| Programs | 300 (500 Pro Version) | 300 (500 Pro Version) | 300 (500 Pro Version) |
| Mixing zones per program | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) |
| Max runtime per cycle | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) |
| Adjustable counterweight | ✓ | ✓ | ✓ |
| Design | |||
| User interface | Touchscreen 10″ | Touchscreen 10″ | Touchscreen 10″ |
| Width (lid closed) | 1906 mm (75″) | 1906 mm (75″) | 1906 mm (75″) |
| Width (lid open) | 2440 mm (96″) | 2440 mm (96″) | 2440 mm (96″) |
| Width on console | N.A. | N.A. | N.A. |
| Height (lid closed) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height (lid open) | 1255 mm (49,4″) | 1255 mm (49,4″) | 1255 mm (49,4″) |
| Height on console (lid closed) | N.A. | N.A. | N.A. |
| Height on console (lid open) | N.A. | N.A. | N.A. |
| Depth | 1347 mm (54″) | 1347 mm (54″) | 1347 mm (54″) |
| Depth on console | N.A. | N.A. | N.A. |
| Weight | 2200kg (4.849 lb.) | 2300kg (5.070 lb.) | 2300kg (5.070 lb.) |
| Input Power | 3 phase 480V | 3 phase 480V | 3 phase 480V |
| Peak power consumption | 9 KW | 11 KW | 11 KW |
| Vacuum interface | N.A. | N.A. | N.A. |
| Capabilities | |||
| Liquid mixing (< ~300k cps) | ✓ | ✓ | ✓ |
| Paste mixing (> ~300k cps) | ✓ | ✓ | ✓ |
| High viscosity mixing (> ~10M cps) | ✓ | ✓ | ✓ |
| Powder mixing | ✓ | ✓ | ✓ |
| Mix liquid with paste | ✓ | ✓ | ✓ |
| Mix powder with paste | ✓ | ✓ | ✓ |
| Mix liquid with powder | ✓ | ✓ | ✓ |
| Mixing multiple samples at once | Accessory | Accessory | Accessory |
| Dispersion | ✓ | ✓ | ✓ |
| Milling & pulverization | Accessory | Accessory | Accessory |
| Stroboscopic process monitoring | Available | Available | Available |
| Live material temperature monitoring | Available | Available | Available |
| Cooling & temperature control | No | No | No |
| Variable counterrotation | ✓ | ✓ | ✓ |
| Manufacturing optimized interface | Manufacturing package | Manufacturing package | Manufacturing package |
| Deairing & bubble removal | ✓ | ✓ | ✓ |
| Vacuum degassing | ✓ | ✓ | ✓ |
| Cartridge deairing | Accessory | Accessory | Accessory |
| Syringe deairing (1 or multiple) | Accessory | Accessory | Accessory |
